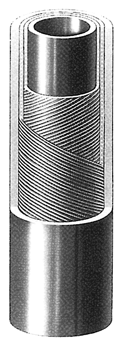

Air Hose

Description

Tube:
Black, smooth SBR rubber
Reinforcement:
Synthetic textile yarns
Cover:
Black (N), abrasion, ageing and weather-resistant, smooth (IL) SBR/EPDM rubber.

Applications

Suitable for compressed air with minimum oil mist mixture and also for some non-aggressive fluids in a wide range of industrial applications.

Standard Lengths

From 30 up to 100m depending on diameters

Packing

All hose coils are wrapped in polythene film.

Tolerances

Tolerance according to ISO 1307/92.
On inside diameter:
up to and including inside diameter 5mm ±
0.60mm
for I.D. 5.1 up to 20mm ± 0.80mm
for I.D. 20.1 up to 25mm ± 1.20mm
for bigger I.D. ± 1.60mm
Length tolerance: ± 1%

Temperature Range

Working temperature: -30°C (-22°F) to +70°C (+158°F).

NOTE: On request also availble PRESS NY/L 20 with yellow cover
